Kit for Self-Evacuation 20 mtr

Reference : FA7002520

Kit for Self-Evacuation with a rescue triangle, rescue strap, semi static rope 20 mtr and descender

Kit for Self-Evacuation 20 mtr

This simple, lightweight self-evacuation kit is intended to be used from an identified work station at height, where wearing a fall arrest harness may not be mandatory. This device enables the system user be evacuated downward.

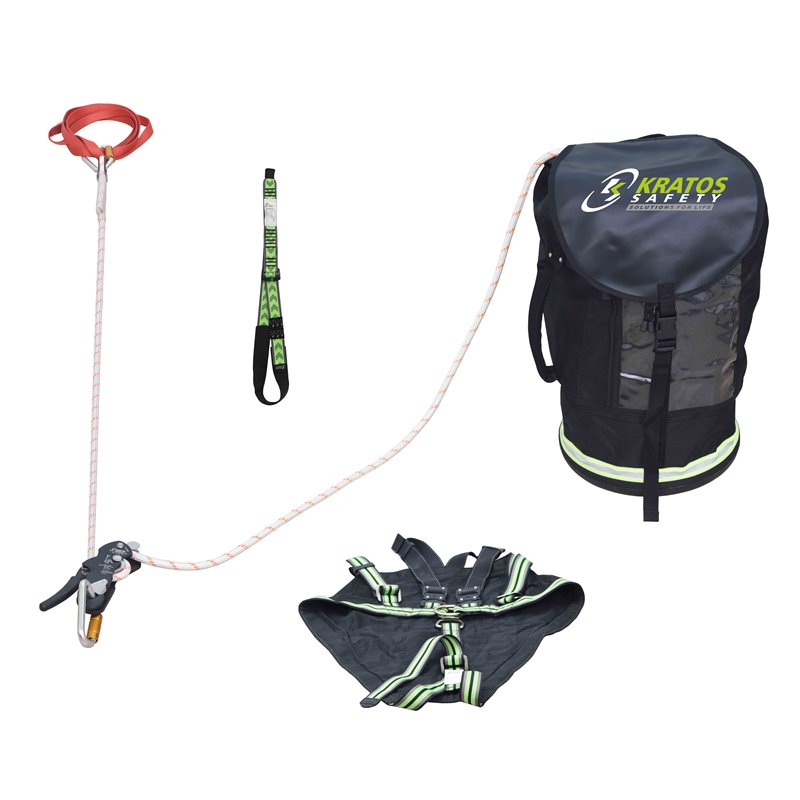

Composition of the kit FA 70 025 20:

- a rescue triangle FA 70 005 00

- a rescue strap FA 70 019 00

- a semi static rope length 20 mtr FA 010 99 (20) (with a triple action-locking karabiner FA 50 304 22 B)

- a descender FA 70 021 00

- 2 anchorage webbings slings, 1,50 m FA 60 005 15

- 4 triple action-locking karabiners FA 50 304 22 B

- a cylindrical bag FA 90 106 00

To download the User's guide of this kit, see the Attachment tab

Reference FA7002520

Data sheet

PPE / NO PPE: PPE
HS Code :: 83081000

Specific References

Download

Latest versions - May differ from the documents delivered with the product or previously received.

• User guide FA 70 025 XX
Download

• FT FA 70 025 XX F2020
Download

RESCUE AND EVACUATION

THE BASICS OF RESCUE AND EVACUATION

During works at height, an accident can happens, and the intervention of a rescue worker can be necessary to evacuate the victim.

In this case, the rescue worker shall take action in an emergency situation. THE GOLDEN RULE in such a case is to PREVENT ANOTHER ACCIDENT FROM HAPPENING.

As a consequence, and before any intervention, the rescue worker should ask himself/herself the following questions:

Is there any residual hazard further to the accident (electrical hazard, presence of gas, ...)?
Am I capable to intervene (physical capacity, psychological capacity, technical capacity, ..)?
Do I have full control of the rescue plan (calling the emergency services, ...) and do I master the operating mode of evacuation?
Have I been SPECIFICALLY trained for the rescue operations that I am going to implement? (OBLIGATION of the Directive 89/655/CEE Article 7 et Annexe ll §4.4.f (Directive 2001/45/CE)).

Then the rescue worker shall be able to intervene in accordance with the rescue plan defined beforehand; their priorities shall be the following:

Securing the victim,
Get the victim off inert suspension in the shortest time,
Await the emergency services in the best conditions.

Every situation is unique, and requires adapted material. When establishing the evacuation plan defining the human and material means to be implemented, it is essential to distinguish between the main following situations:
