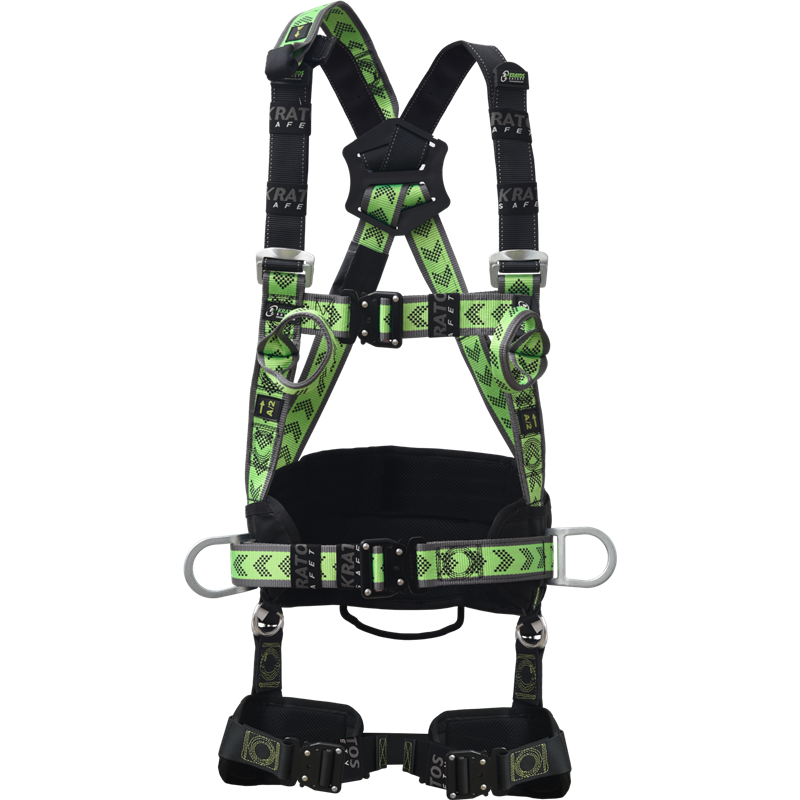

SPEED-AIR 4 - Full body harness 2 attachment points with rotative belt (L-XXL)

Reference : FA1020702

SPEED-AIR 4 - Full body harness 2 attachment points with rotative belt

Attachment Elements - 2 big size chest attachement textile loops (2 x A/2), 1 dorsal D-Ring for fall arrest, 2 lateral D-Rings for work positioning. With an extension strap attached on the dorsal D-Ring at one end and one loop at the other side.

Adaptability - Adjustable chest strap, shoulders, thigh-straps and waist belt.

Convenience - Shoulder straps have combination buckles. Chest strap, thigh-straps, waist strap are provided with automatic buckles for easy adjustment.

Ergonomics - Special rotative belt for easy mobility and great comfort .

Compliance - Conforms to EN 361:2002 and EN358:1999.

Can be used by a user with a maximum weight of 140 kg.

To download the User Instructions of the product, see the Attachment tab

Size : L - XXL

Weight : 2.64 kg

Strap material : Polyester

Buckles material : Steel

Reference FA1020702

Data sheet

Max. user weight: 140 kg
Size:: L - XXL
Buckle(s):: 5 adjustment buckles among which 3 automatic
Other attachement points:: 2 lateral D-rings for work positioning
Attachement points:: Dorsal D-ring, front attachement made of 2 textile loops
HS Code :: 63079098
Range: MEDIUM

Specific References

Download

Latest versions - May differ from the documents delivered with the product or previously received.

• Instructions FA 10 2XX XX
FA 10 2XX XX ( EN361 + EN358)
Download

• Reducing lg of webbing
Download

• FA10_Inspection
Download

• AET N°2777_12610-02_E00-00
FA 10 207 XX, FA 10 214 XX
Download

• FT FA 10 207 XX
Download

• AET UKCA N°0321_16239-02_E00-00
FA 10 207 XX, FA 10 214 XX
Download

• fa1020702_dc_5
Download

HARNESSES AND BELTS

EN361

EN358

A harness is a body support system intended to stop falls and keep the user in the best conditions while awaiting the rescue.
The attachment points are static strength> 15 kN.

A work positioning belt is a device that allows a user to be held in a position having hands free.
The attachment points are static strength> 15 kN.

A work positioning belt must not be used as a fall arrest device.

Use:

Simple harness, harness with work jacket, harness with belt, suspension harness,… the most important thing is finally to choose the equipment according to the job and taking into account the work environment

Selecting one s harness properly entails asking the right questions:

1) Which size do I need? How heavy am I?

Size:

The chart hereunder indicates the body s measures. For the wearing of a harness over clothing, the harness adjustments allow to obtain the right size.

* Values given as an indication only. May fit slightly smaller or taller heights. All values expressed in cms.

2) Which attachments do I need?

Attachments points:


With 1 or 2 attachment points (dorsal and sternal)	With 1 or 2 attachment points + 2 work positioning points (lateral)	With 1 or 2 attachment points + 2 work positioning points + 1 suspension point (ventral

3) What is my work situation? Do I work in a specific environment?

	Cherry picker		Work station prevention
	Inclined plan		Confined space
	Horizontal plan		Double rope descent
	Work station holding		Suspension
	Fixed ladder		Door Frame Work
	Scaffolding		Rescue - Evacuation
	Lattice metallic structure

4) How frequently do I use my harness?


Occasional use	Regular use	Frequent use	Intensive use

These criteria as selection guides for your harness are clearly indicated next to all harnesses in the following pages.

KRATOS SAFETY also offers you some separable components (Suspension trauma strap, saddle work, back padded , ....) that allow you to accessorize your harness to suit your needs.
