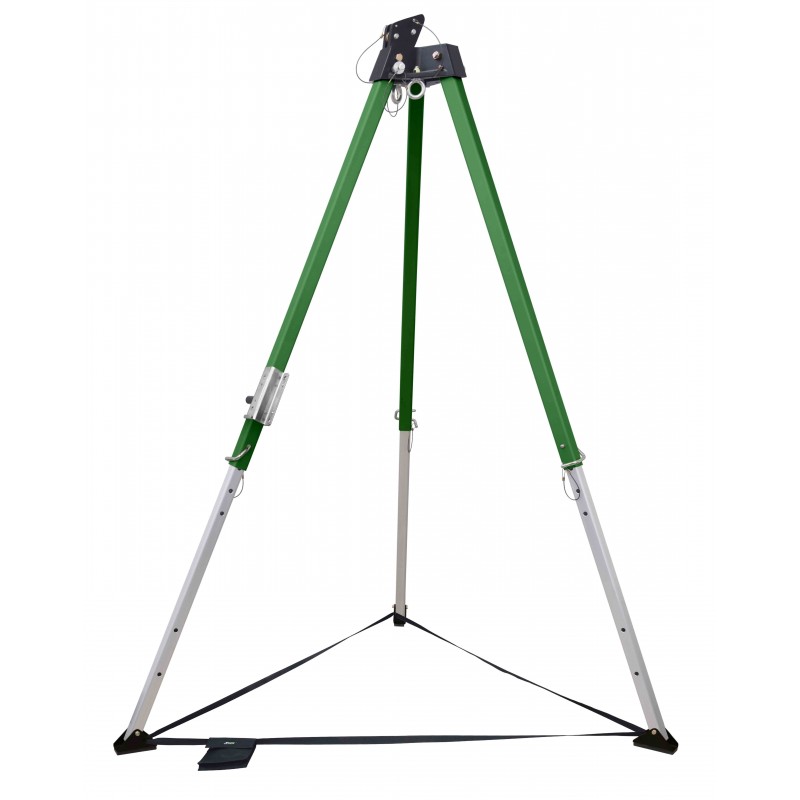

Tripod - 7 feet maxi height
Reference : FA6000100
Tripod with 7 feet maxi height for access in confined spaces
7 ft. Tripod maxi
For access in confined spaces
Adjustable height: from 1.15 m to 2.15 m
Wheelbase: from 1.08 m to 1.62 m
Weight: 14.3 kg
Maximum Load Capacity : 500 kg under head / 250 kg on leg
Conforms to : EN795:2012 type B, Machinery Directive, EN 1808.
Can be used in ATEX atmosphere (zone 1).
- With two mounted pulleys at the head of the Tripod in the extension of the main leg for passing a cable
- Having two auxiliary eye bolts as attachment points.
- Aluminum alloy cast head, legs in aluminium.
- Steel support-shoes provided with rubber sole to increase friction and impart more stability.
- Strength of anchorage point greater than 12 kN
- Every Tripod is provided with inbuilt fixture for attaching our winches FA 60 003 20/20S and FA 60 003 30/30S.
- Every Tripod is provided with Tripod Bag
To download the Tripod instructions for use, see the Attachment tab
FA6000100
Data sheet
- Standard(s):
- EN795:2012 type B
- Material:
- Aluminium alloy cast headLegs en aluminium
- PPE / NO PPE
- PPE
- Size:
- Adjustable height from 1,15m to 2,15m, wheelbase : from 1.08 m to 1.62 m
- Attachement points:
- deux anneaux d'ancrage
- Product highlights
- Bag included
- HS Code :
- 76169990
Specific References
No AR and 3D view
