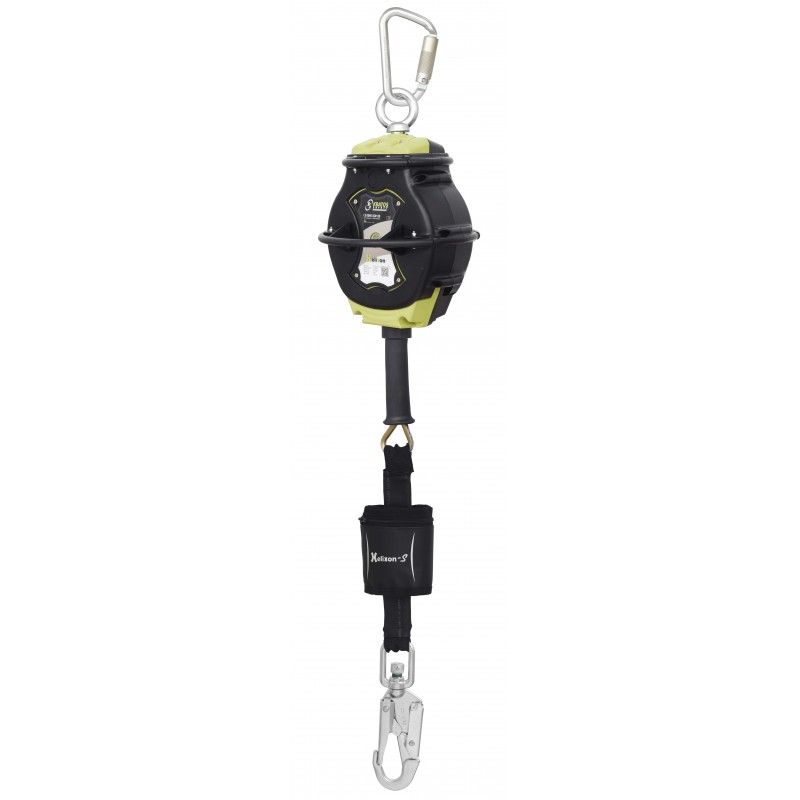

HELIXON-S Retractable fall arrester 7 m galvanized cable with integrated FA 20 EXO 07 exoskeleton

Reference : FA2040207EXO

HELIXON-S Retractable fall arrester 7 m galvanized cable for vertical and horizontal use, with integrated FA 20 EXO 07 exoskeleton

HELIXON-S Retractable fall arrester 7 m galvanized cable with integrated FA 20 EXO 07 exoskeleton

- Robust & durable polymer casing, equipped with:
a carrying handle,
a window, that can be easily removed for reaching the internal mechanism, in order to inspect it without totally opening the casing.

- Comes with Galvanized Steel Wire Rope of diam 4.8 mm, having:
a connector ref. FA 50 203 20 with load indicator,
a gripping handle,
an external energy absorber.
- Internal braking mechanism to reduce the fall arrest force to less than 6 kN.
- Swivel and FA 50 225 23B connector at anchorage end.
- Weight: 4.08 kg.

Compliance: EN 360:2002, VG11.060.
Minimum breaking strength > 12 kN.
Approved for a user with a max. weight of 140 kg in vertical use and in horizontal use.

Delivered with a cord (FA 20 904 07) for guiding the winding back of the wire rope.

To download the product instructions for use, see the Attachment tab

FA2040207EXO

Data sheet

Maximum user weight (horizontal use)
140 kg
Maximum user weight (vertical use)
140 kg
Standard(s):
EN360:2002
PPE / NO PPE
PPE
HS Code :
84798997
