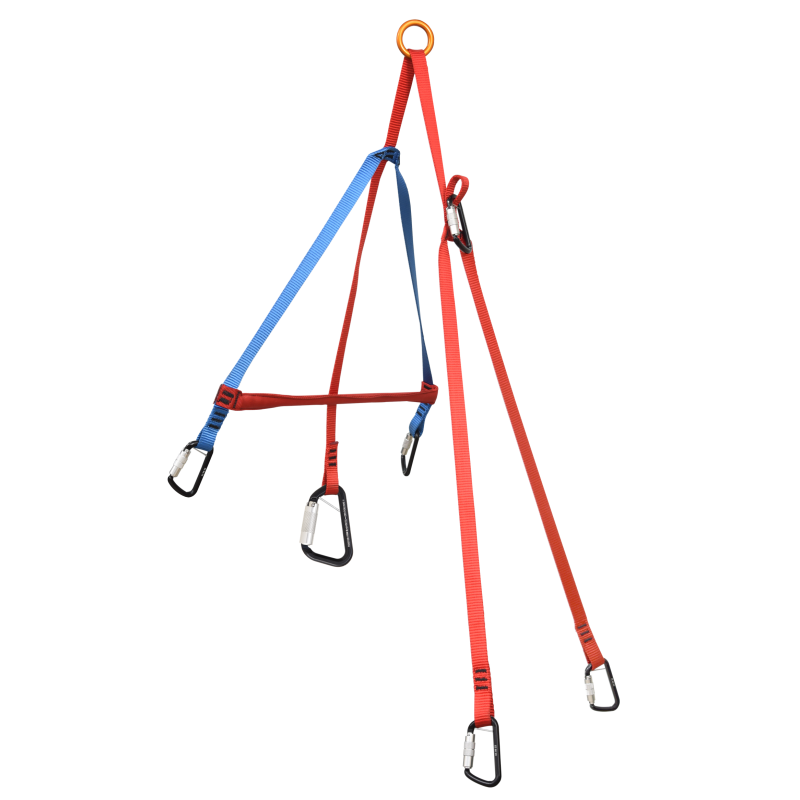

Reclining device for stretcher

The accessory FA 70 018 01 can be used to make it easier to change the tilt of the stretcher.

It consists of:
• 2 strands of the blue strap 1 for connection to the stretcher's blue strap B rings. These are held apart by a reinforced red horizontal strap;
• 2 strands of the red strap 2 for connection to the red strap rings C on the stretcher;
• 1 strand of the red strap 3 is used to connect this set of straps to the victim's harness (if fitted).
• At the top, 1 orange aluminium ring 4 for attaching the unit to a rescue system, plus 1 strap ring with 1/4-turn connector 5 for tilting the stretcher.

Maximum weight of victim: 150 kg.

Weight of device: 0.56 kg.
Material: Polyester & Aluminium
Connectors: 1x FA 50 201 22B, 5x TS 90 001 07

HS code: 94029000
