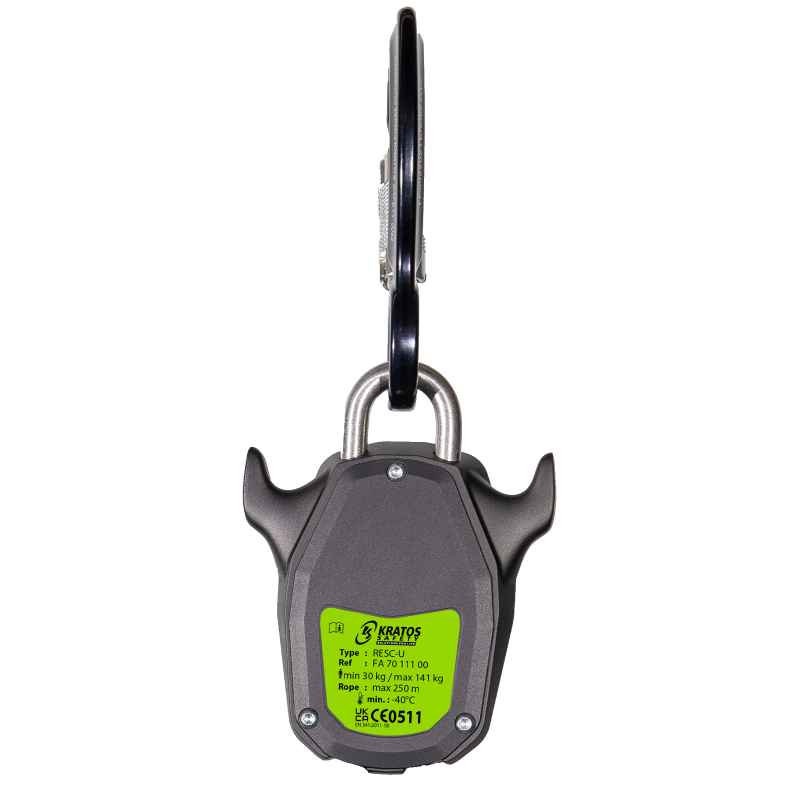

RESC-U, downward evacuation device

Reference : FA7011100

RESC-U, downward evacuation device

RESC-U, downward evacuation device

RESC-U is the perfect device for quick rescue operations.
Made of aluminium alloy and high-strength steel.
To use with 9.6 mm diameter semi static kernmantle rope (FA 70 109 99 + FA 70 109 98).

Controlled descent speed: < 2 m/sec, regardless the weight (max. weight 141 kg).

Maximum descent height: 250 m.

Brake system: Automatic.

Maximum no. of users: 1 user - 141 kg.

Inspection: Once a year or every 2000 m of rope.

Available in 2 lengths: 20 m (FA 70 111 20), 40 m (FA 70 111 40).

Compliance: EN 341:2011-1B.

FA7011100

Data sheet

HS Code :
84254900

Specific References

Download

Latest versions - May differ from the documents delivered with the product or previously received.

• FT FA 70 111 XX
FA 70 111 00, FA 70 111 20 , FA 70 111 40
Download

No AR and 3D view
