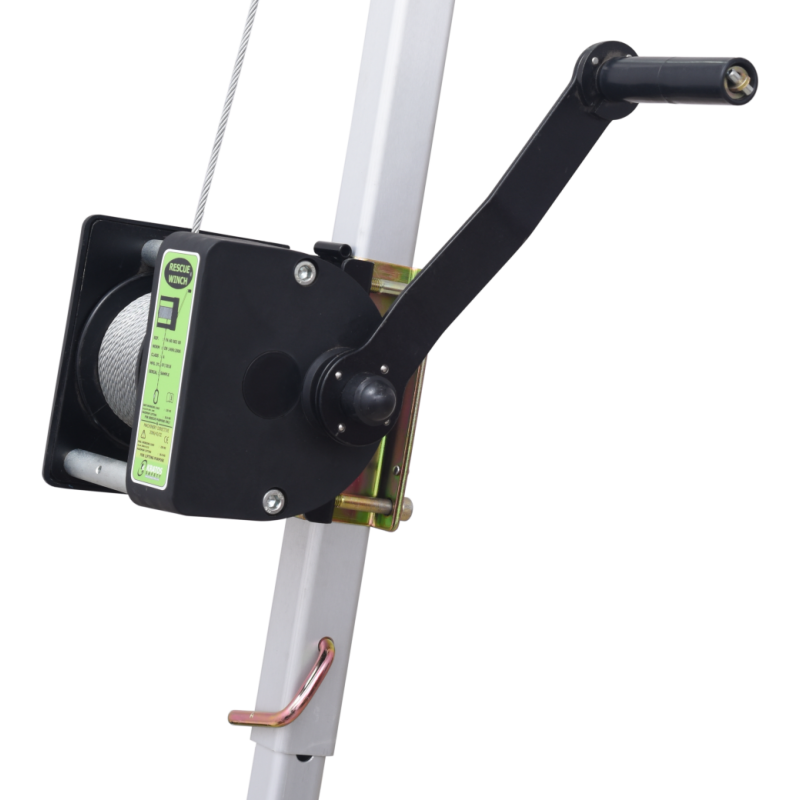

Rescue and work winch, length 20 mtr, for Tripod & MultiSafeWay

Reference : FA6000320

Rescue and work winch, length 20 mtr, for Tripod & MultiSafeWay

Rescue and work winch, length 20 mtr, for Tripod & MultiSafeWay

To be used for raising or lowering of personnel or material into confined spaces.

Minimum working load: 60 kg.

Safe working load (as per EN1496): 135 kg.

Maximum working load (as per Machinery Directive): 250 kg.

Length : 20 mtr

Galvanized cable diam : 4,8 mm

Conforms to:  Machinery Directive 2006/42/EC, EN 1496:2017 Class A, EN 13157:2004, ATEX Directive 2014/34/EU.

HS Code : 8425 19 20.

Equipped with bolting fixture for robust fitting on to the Tripod.




To download the winch instructions for use, see the Attachment tab



FA6000320

Data sheet

Standard(s):
EN1496 : 2006 class A, machinery directive 2006-42-CE, EN13157 : 2004
Material:
alloy steel
PPE / NO PPE
PPE
Size:
wire rope lg 20mtrs
Product highlights
Produit compatible avec Trépied FA 60 001 00 et FA 60 002 00

Download

Latest versions - May differ from the documents delivered with the product or previously received.

• Instructions FA 60 003 XX
FA 60 003 20, FA 60 003 30
Download

• ATEX Certificate 3974/1/2018
Tripods, Winches, KS7000-KS8000-KS9000 Systems
Download

• FT FA 60 003 20-20S
FA 60 003 20, FA 60 003 20S
Download

• fa6000320_dc_notppe_en
declaration of conformity
Download
