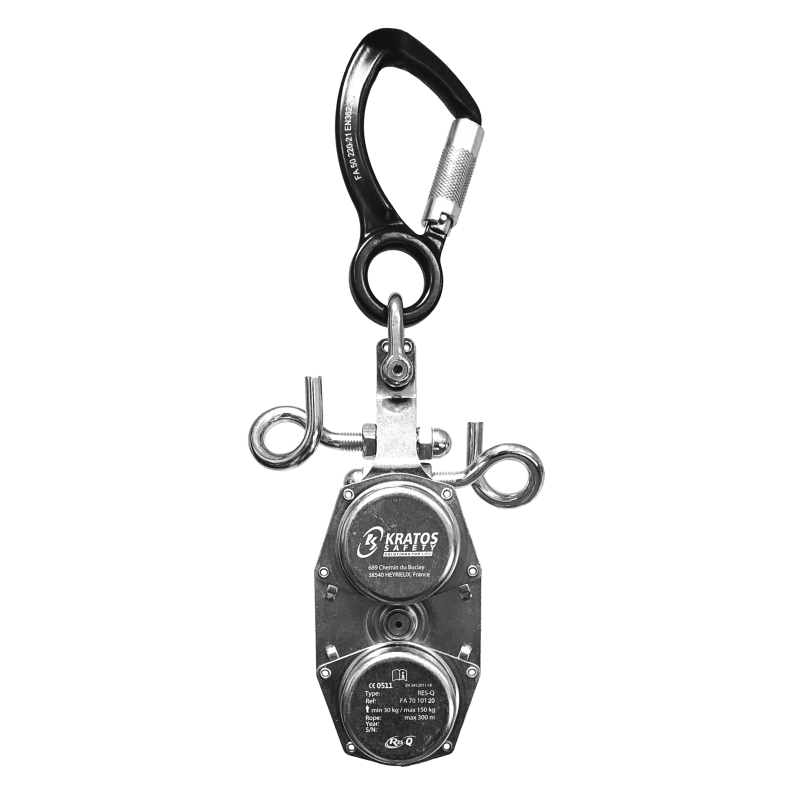

RES-Q, downward evacuation device

Reference : FA7010100

RES-Q, downward evacuation device

RES-Q, downward evacuation device

Res-Q is the perfect device for quick rescue operations. Made of aluminium alloy and high-strength steel.

To use with 9.6 mm diameter semi static kernmantle rope (FA 70 009 99 + FA 70 009 98).

Controlled descent speed: 0.8 m / sec, regardless the weight (max. weight 150 kg).

Maximum descent height: 300 m.

Brake system: Automatic.

Maximum no. of users: 1 user < 150 kg.

Inspection: Once a year or every 2000 m of rope.

Available in 2 lengths: 20 m (FA 70 101 20), 40 m (FA 70 101 40).

Compliance: EN 341:2011-1B.
