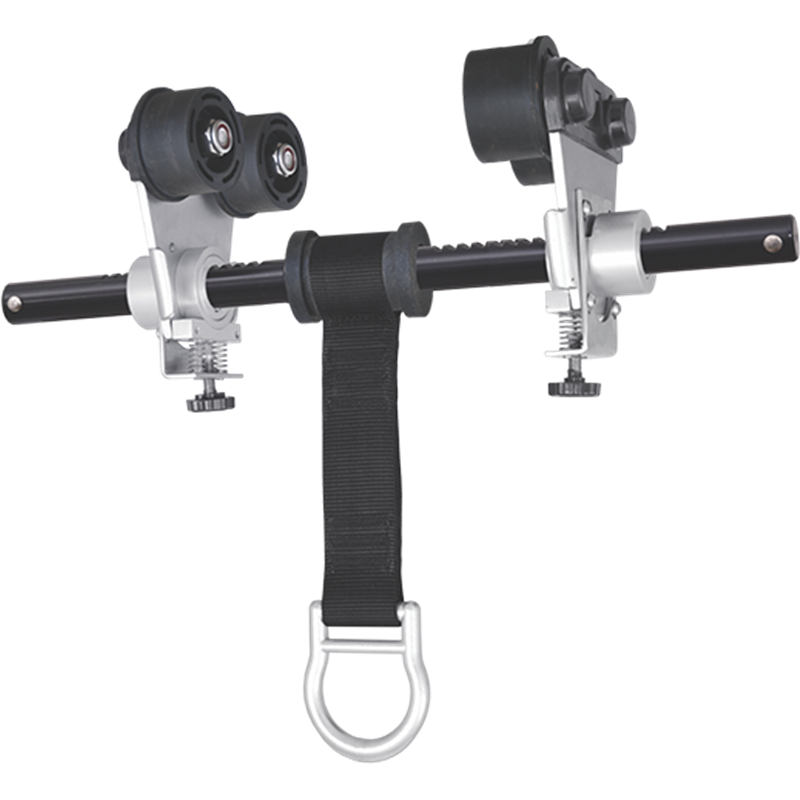

GRAB'N'ROLL - Beam anchor trolley - dielectric version

Reference : FA6000804

GRAB'N'ROLL - Beam anchor trolley - dielectric version

GRAB'N'ROLL - Beam anchor trolley - dielectric version

- Material: Aluminium and Stainless steel.

- Weight: 3.70 kg.

- Dimensions: Designed to be installed on beams whose width can vary from 80 to 250 mm.

- Anchoring on D-ring, inner diameter 55 mm.

- Max. dielectric resistance: 30 kV.

Compliance: EN795:2012 Type B.

Static strength as per EN795:2012 Type B: 12 kN.

Minimum breaking strength: 23 kN.

- HS code: 8308 10 10

To download the product instructions for use, see the Attachment tab

FA6000804

Data sheet

Standard(s):
EN 795:2012 Type B
PPE / NO PPE
PPE
Protection:
Di-electric

Specific References

Download

Latest versions - May differ from the documents delivered with the product or previously received.

• AET N°2777_10796-03_E02-01
FA6000802 FA6000803 FA6000804
Download

• FT FA 60 008 03-04
FA 60 008 03, FA 60 008 04
